Performance and characteristics and use: pressurized quantitative measuringparts, which belong to the direct pressure action type. The piston action of themetering part is driven by the pressure oil output by the lubrication pump, and thepiston is reset by the spring force when the oil pump stops working, that is, themetering is measured and stored for quantitative oil.The oil discharge isaccurate, and the metered parts are discharged only once in one oil supply cycleand far away in the lubrication system. Near. High, low, horizontal or verticalinstallation have no effect on the displacement of metering parts, forced oildischarge, sensitive action. Two seals are used to prevent the discharge of oilagent from flowing back.The measuring parts and the coupling are splitstructures, according to the oil demand of each lubrication point, thecorresponding measuring parts are arbitrarily selected, and the PV seriesconnectors can be used in free combination, and can be used in series andparallel.The diameter of the oil outlet of the metering part is p4, which needs tobe connected with GN-4 oil pipe joint and GB-4 duo-cone ferrule.

The pressurized quantitative type ( For Volumetric System) measuring piece is a direct pressu re type. Depending on the type of

connecting thread.

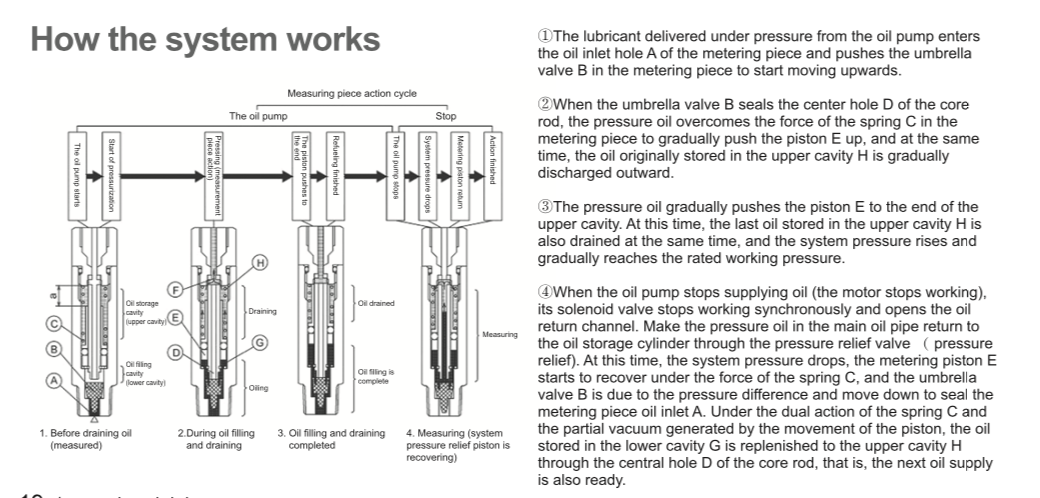

The pressure oil delivered by the lubrication pump pushes the piston built in the metering member to force the discharge of the quantitative oil :

When the lubrication pump stops working, the measuring piece is reset by the spring force, the metering and storing the quanti

tative oil.

The oil discharge is accurate. The metering parts are only drained once in a single oil supply cycle, and the distance between thewo in the lubrication system is far, near, high, and low. The horizontal or vertical installation has no effect on the displacement otthe measuring parts.

Forced to drain oil, sensitive action. Two seals are used to prevent the discharged oil from flowing back. The measuring piece and the oil row are in a split structure, and the corresponding measuring piece can be arbitrarily selectedaccording to the demand of each lubricating point, and can be used freely in combination with the RH series and the T86, ALFCseries oil row.

The diameter of the oil outlet of the metering part is @4.

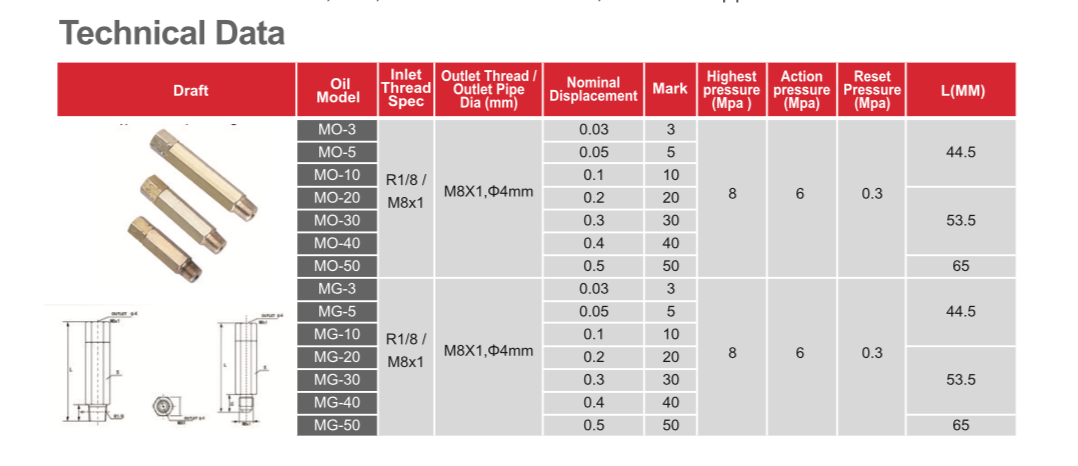

Oil inlet Thread Can choose R1/8, M8*1, Oii Outlet Thread Size M8*1, Match 4mm oil pipe.
