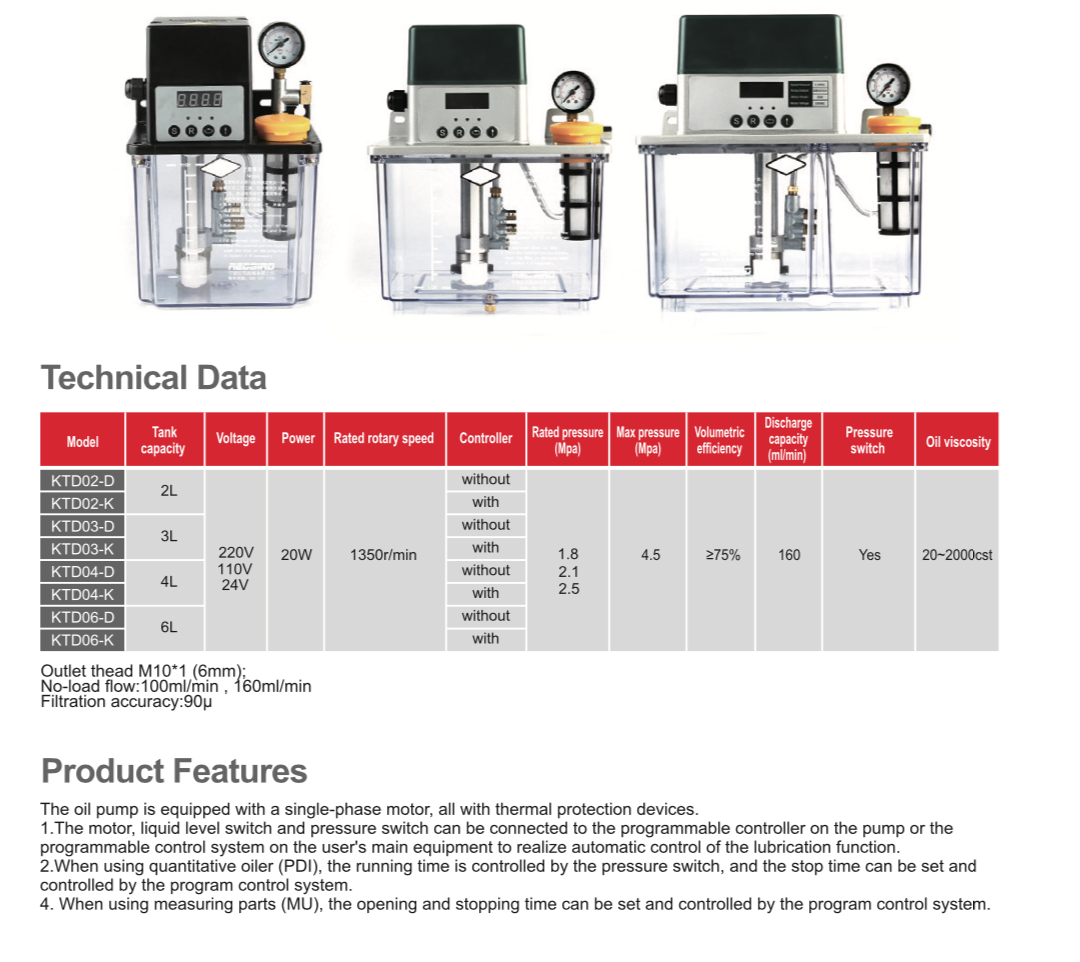

KTD Series electric lubrication pump is a gear pump. ts oil tank volume has four specifications of 2 liters, 3 liters and 4iters 6 iters. The pump has a level switch According to different uses, pressure switch can also be confiqured ,connectedto the programmer on the pump. lt can also be connected to the user's main device program controller system, Canachieve the oil level in the oil tank,oil pressure monitoring system, as wel as the equipment lubrication cycle. KTD Serieselectric lubricating pumps can form a PDI lubrication system with a quantitative oil injector (PD) to perform quantitativeoil injection lubrication on each lubrication point; it can also form an SLR lubrication system with a metering part (MU) toperform proportional oil lubrication on each lubrication point; or Progressive distributor (PRG) constitutes the PRGlubrication system

KTD series of electric lubrication pumps can be widely used in the centralized lubrication system of various equipmentsuch as machine tools. plastic machinery, textile machinery, light industry machinery, printing machinery, escalators anotransportation machinery.
