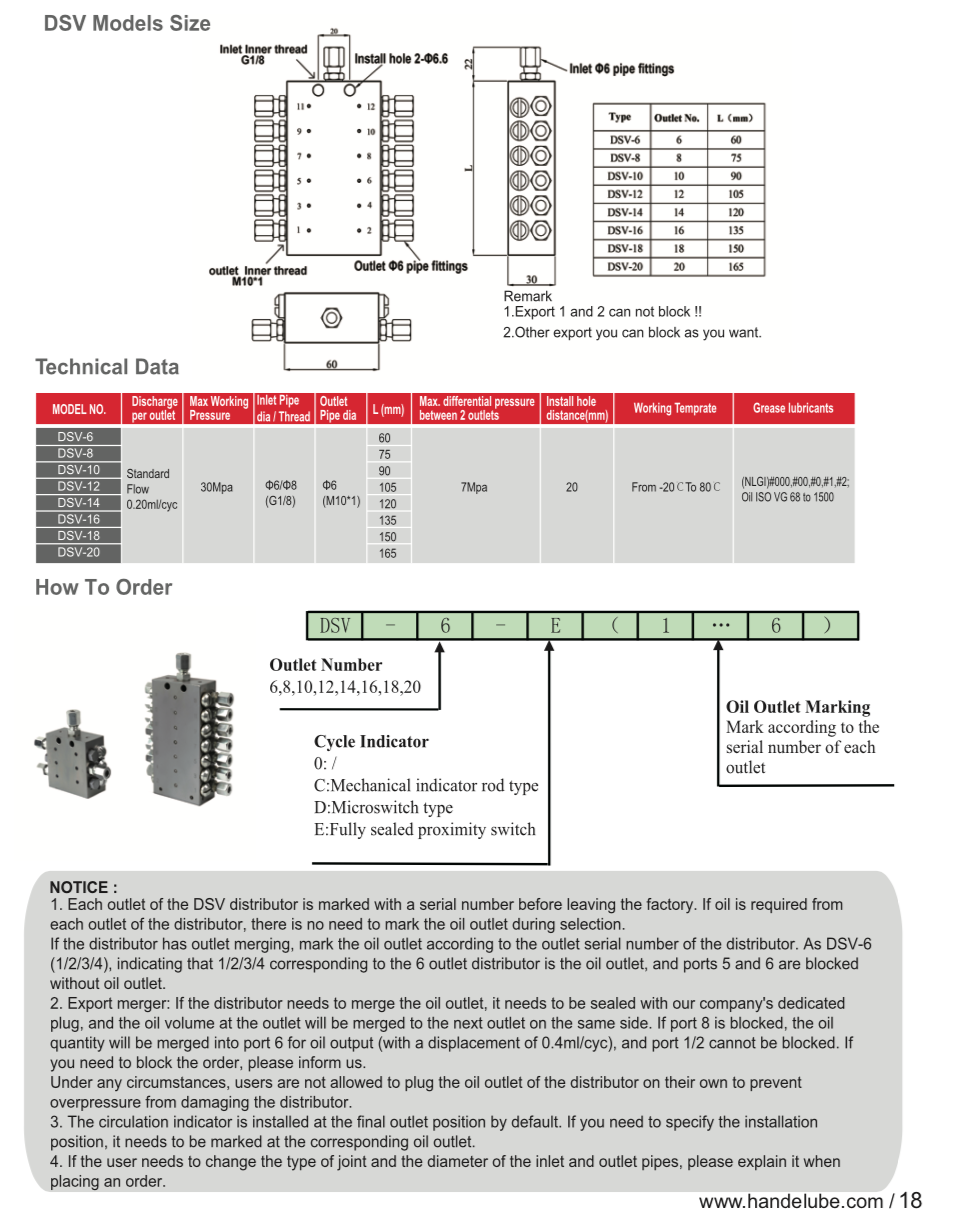

The DSV(SSV) type progressive distributor is an integral block structure with high oil pressure, strong shock resistance, overall dust and corrosion resistance, suitable for various harsh environmental conditions. The number of oil outlets of DSV(SSV) type distributors is generally 6 to 20, and the displacement of each outlet is 0.20ml/cyc. The number and displacement of oil outlets of the distributor can be changed by merging the outlets. Each oil outlet joint is equipped with a one-way valve, which can effectively prevent oil return.

Performance characteristics :

Integral progressive distributor DSV(SSV) can provide metered lubrication for eachlubrication point in the centralised lubrication system, with the advantages ofenergy saving and high efficiency, it is the ideal product for centralised lubricationof vehicles, construction machinery, machine tools, wind power generation,plastic machinery, paper machinery, textile machinery, printing and packagingmachinery, etc.

elt has precise lubricant output at the outlet, compact design, easy andconvenient installation, built-in check valve in the oil outlet component, precisiongrinding of cinnamon plug vice, and unique monitoring component.lt can be equipped with an oil outlet indicator lever and a proximity switch.Outlets 1 and 2 are not available. (1 and 2 outlets can not be blocked, other outletscan be blocked with plugs)
